Stainless steel corrugated gas pipe
JX-GJ001/JX-WH001
Technical standard
1.Nominal pressure: 0.7 MPa
2.Testing pressure: 1 MPa
3.Bursting pressure: 10 MPa
4.A material: brass with nickel plating; B/C material: AISI304/ AISI316L
5.Thickness: 0.18-0.30mm
6.Bending number: 300
7.Welding technology: TIG
8.Medium: Water, Gas, Oil etc.
9.Working temperature: -40~100℃
10.Certificate: CE/ ISO
Item No. | Dimension(mm) | |||
JX-GH001 JX-WH001 | DN | F | F | L |
13 | 1/2" | 1/2" | 75~130 2500~5000 | |
20 | 3/4" | 3/4" | ||
25 | 1" | 1" | ||
32 | 1-1/4" | 1-1/4" | ||
40 | 1-1/2" | 1-1/2" | ||
50 | 2" | 2" |
JX-GJ002/JX-WH002
Technical standard
1.Nominal pressure: 0.7 MPa
2.Testing pressure: 1 MPa
3.Bursting pressure: 10 MPa
4.A/B/C material: AISI304/ AISI316L; D material: brass with nickel plating
5.Thickness: 0.18-0.30mm
6.Bending number: 300
7.Welding technology: TIG
8.Medium: Water, Gas, Oil etc.
9.Working temperature: -40~100℃
10.Certificate: CE/ ISO
Item No. | Dimension(mm) | |||
JX-GH002 JX-WH002 | DN | F | F | L |
13 | 1/2" | 1/2" | 75~130 2500~5000 | |
20 | 3/4" | 3/4" | ||
25 | 1" | 1" | ||
32 | 1-1/4" | 1-1/4" | ||
40 | 1-1/2" | 1-1/2" | ||
50 | 2" | 2" |

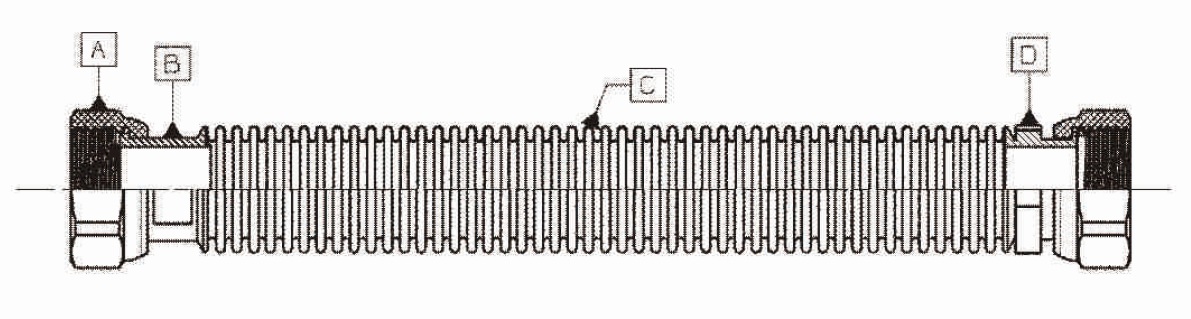

JX-GJ003/JX-WH003
Technical standard
1.Nominal pressure: 0.7 MPa
2.Testing pressure: 1 MPa
3.Bursting pressure: 10 MPa
4.A material: brass with nickel plating; B/C/D material: AISI304/ AISI316L
5.Thickness: 0.18-0.30mm
6.Bending number: 300
7.Welding technology: TIG
8.Medium: Water, Gas, Oil etc.
9.Working temperature: -40~100℃
10.Certificate: CE/ ISO
Item No. | Dimension(mm) | |||
JX-GH003 JX-WH003 | DN | F | F | L |
13 | 1/2" | 1/2" | 75~130 2500~5000 | |
20 | 3/4" | 3/4" | ||
25 | 1" | 1" | ||
32 | 1-1/4" | 1-1/4" | ||
40 | 1-1/2" | 1-1/2" | ||
50 | 2" | 2" |
Stainless steel corrugated gas pipe
JX-GJ001/JX-WH001
Technical standard
1.Nominal pressure: 0.7 MPa
2.Testing pressure: 1 MPa
3.Bursting pressure: 10 MPa
4.A material: brass with nickel plating; B/C material: AISI304/ AISI316L
5.Thickness: 0.18-0.30mm
6.Bending number: 300
7.Welding technology: TIG
8.Medium: Water, Gas, Oil etc.
9.Working temperature: -40~100℃
10.Certificate: CE/ ISO
Item No. | Dimension(mm) | |||
JX-GH001 JX-WH001 | DN | F | F | L |
13 | 1/2" | 1/2" | 75~130 2500~5000 | |
20 | 3/4" | 3/4" | ||
25 | 1" | 1" | ||
32 | 1-1/4" | 1-1/4" | ||
40 | 1-1/2" | 1-1/2" | ||
50 | 2" | 2" |
JX-GJ002/JX-WH002
Technical standard
1.Nominal pressure: 0.7 MPa
2.Testing pressure: 1 MPa
3.Bursting pressure: 10 MPa
4.A/B/C material: AISI304/ AISI316L; D material: brass with nickel plating
5.Thickness: 0.18-0.30mm
6.Bending number: 300
7.Welding technology: TIG
8.Medium: Water, Gas, Oil etc.
9.Working temperature: -40~100℃
10.Certificate: CE/ ISO
Item No. | Dimension(mm) | |||
JX-GH002 JX-WH002 | DN | F | F | L |
13 | 1/2" | 1/2" | 75~130 2500~5000 | |
20 | 3/4" | 3/4" | ||
25 | 1" | 1" | ||
32 | 1-1/4" | 1-1/4" | ||
40 | 1-1/2" | 1-1/2" | ||
50 | 2" | 2" |
JX-GJ003/JX-WH003
Technical standard
1.Nominal pressure: 0.7 MPa
2.Testing pressure: 1 MPa
3.Bursting pressure: 10 MPa
4.A material: brass with nickel plating; B/C/D material: AISI304/ AISI316L
5.Thickness: 0.18-0.30mm
6.Bending number: 300
7.Welding technology: TIG
8.Medium: Water, Gas, Oil etc.
9.Working temperature: -40~100℃
10.Certificate: CE/ ISO
Item No. | Dimension(mm) | |||
JX-GH003 JX-WH003 | DN | F | F | L |
13 | 1/2" | 1/2" | 75~130 2500~5000 | |
20 | 3/4" | 3/4" | ||
25 | 1" | 1" | ||
32 | 1-1/4" | 1-1/4" | ||
40 | 1-1/2" | 1-1/2" | ||
50 | 2" | 2" |
