Gas+CO leakage detector MG-08/MG-09


Product introduction

The product is wall mounted gas detector with high stability (hereinafter called detector). It is used for detecting leaking gas. Advanced semiconductor sensor is adopted to ensure high stability and long life. It is convenient for mounting. The product is suitable for the safety of residential house, villas, hotels, markets, boarding house ect.

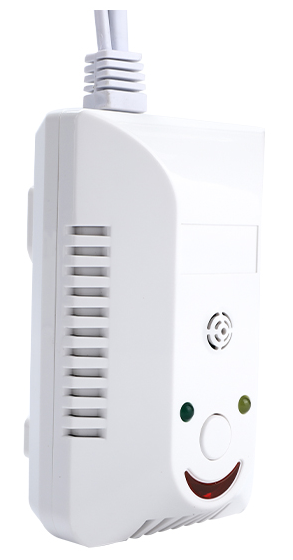

MG-08

GAS+CO LEAKAGE DETECTOR

Operating voltage: AC Power 85-264V

Rated power: ≤3W

CO sensor life: 7 years

GAS sensor life:10 years

Gas alarm level: 10% LEL

CO alarm level: 50ppm, 60-90 minutes;

100ppm, 10-40 minutes;

300ppm, within 3 minutes

Sound Level:85dB at 3m

Warm-up time:180s

Dimension: 112X80X39mm

Operating Temperature: -10℃~+50℃

Environment Humidity: ≤95%RH (no condensation)

Auto reset after alarm

Automatic detection of fault

MCU processing adopted

Induced CO, gas-nature gas, LPG

Working with electromagnetic valve or manipulator(optional)

Malfunction auto-check indicator

Alarm Output: Sound & Flash alarm

Solenoid value signal output (optional)

Relay output NO or NC (optional)

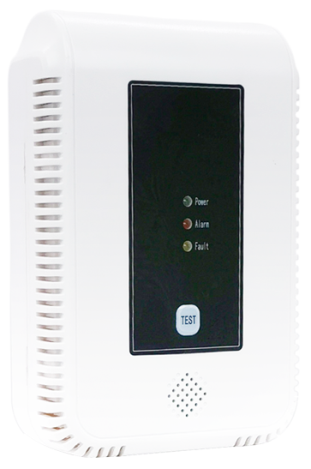

MG-09

GAS+CO LEAKAGE DETECTOR

Operating voltage: AC Power 85-264V

Rated power: ≤3W

CO sensor life: 7 years

GAS sensor life:10 years

Gas alarm level: 10% LEL

CO alarm level: 50ppm, 60-90 minutes;

100ppm, 10-40 minutes;

300ppm, within 3 minutes

Sound Level: 85dB at 1m

Warm-up time: 180s

Dimension: 110*72*42.5mm

Operating Temperature: -10℃~+50℃

Environment Humidity: ≤95%RH (no condensation)

Auto reset after alarm

Automatic detection of fault

MCU processing adopted

Induced CO, gas-nature gas/LPG

Working with electromagnetic valve or manipulator(optional)

Malfunction auto-check indicator

Alarm Output: Sound & Flash alarm

Solenoid value signal output (optional)

Relay output NO or NC (optional)
