Commercial GPRS Diaphragm Gas Meter with Steel Case G1.6S~G6S

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Diaphragm gas meter with steel case G1.6S~G6S

Product introduction

Diaphragm gas meter with aluminum case is applicable to natural gas, LPG gas, artificial gas, methane, common air and non-corrosion gas. Parameters of the gas meters accord with the requirements of <GB/T6968-1997 diagram gas meter>. It is an ideal choice of domestic gas meters.


Product features

Case material: Baosteel cold-rolled galvanized steel

Case process: automatic intelligent stamping integrated molding

Movement component: independent movement

Valve structure: reciprocating valve

Built-in anti-theft: built-in anti-backflow device, built-in grid protection, anti-tampering protection

Slide valve technology: German high-precision sand-free grinding technology

Movement technology: Ultrasonic welding technology, stable movement operation

Surface technology: Imported weather-resistant ultra-fine spray powder, high temperature resistance; nano-ceramic zirconium salt anti-corrosion treatment technology, strong corrosion resistance; automatic intelligent integration of electrostatic spraying technology, smooth surface finish

Calibration: Adopt sonic nozzle and bell housing double compound calibration to ensure the accuracy of measurement

Environmental adaptation: the meter passes the high and low temperature alternating dynamic operation test to ensure the performance of the meter


Product parameters

Parameters

Unit

Model

G1.6S

G2.5S

G4S

G6S

Nominal flow-rate

m3/h

1.6

2.5

4

6

Maximum flow-rate

m3/h

2.5

4

6

10

Minimum flow-rate

m3/h

0.016

0.025

0.04

0.06

Maximum Pressure

kPa

50

The limits of registration error

%

0.1Qmax≤Q≤Qmax±1.5  Qmin≤Q<0.1Qmax±3

Pressure loss

Pa

≤200

Air tightness

kPa

No leakage under the pressure of 50kPa

Performance under  continuous operation


Continuously operated under Qmax for 2000hours the performance will confirm with technical parameters above



Working temperature

-20~40

Size(L×BxH)

mm

203x163x223

222x182x249

Thread of inlet & outlet


M30x2

G1-1/4"

Distance between(S)

mm

130

Weight

kg

2.00

2.00

2.00

2.30

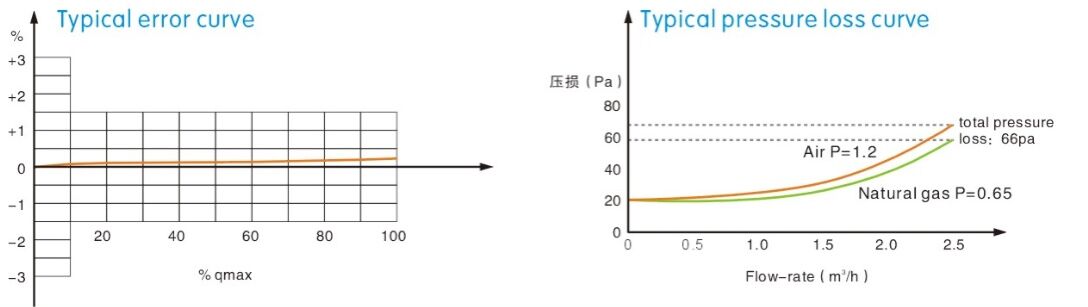

Curve drawing

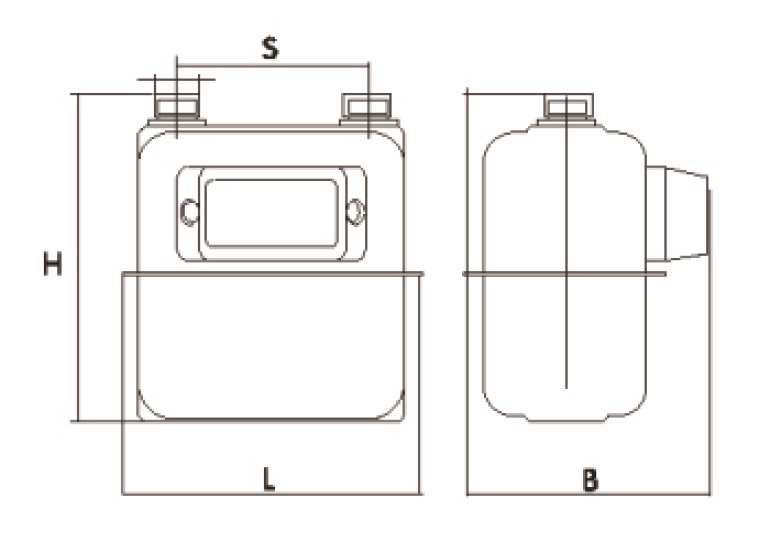

Dimension drawing
